(Summer Specials)WOODPECKER  Surgic Touch ,3rd  Generation Piezo Bone Surgery CE/FDA

After ten years’ research and development,the third generation of  Piezo Bone Surgery is launched.

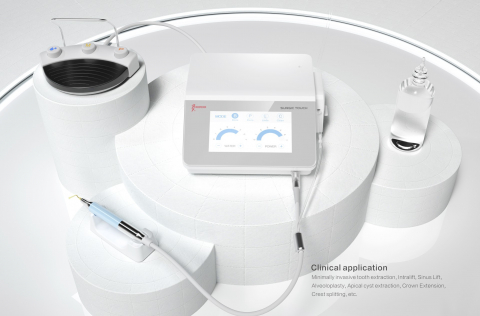

Clinical application
Minimally invasive tooth extraction,Intralift,Sinus Lift,Alveoloplasty,Apical cyst extraction,Crown Extension,Crest splitting,etc.

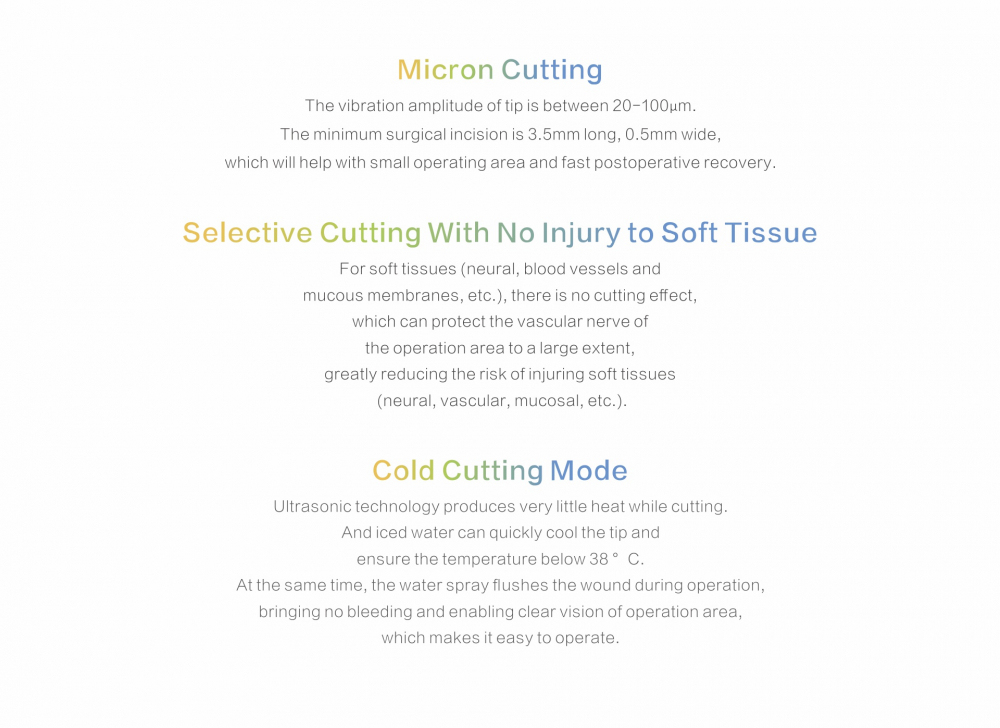

Mocron Cutting
The vibration amplitude of tip is between 20-100um.
The miniumum surgical incision is 3.5mm long,0.5mm wide,which will help with small operation area and fast postoperative recovery.

Selective Cutting With No Injury to Soft Tissue
For soft tissues(neural,blood vessels and mucous membranes,etc.),there is no cutting effect,which can protect the vascular nerve of the operation area to a large extent,greatly reducing the risk of injuring soft tissues(neural,vascular,mucosal,etc.).

Cold Cutting Mode
Ultrasonic technology produces very little heat while cutting.And iced water can quickly cool the tip and ensure the temperature below 38 degree.At the same time,the water spray flushes the wound during operation,bringing no bleeding and enabling clear vision of operation area,which makes it easy to operate.

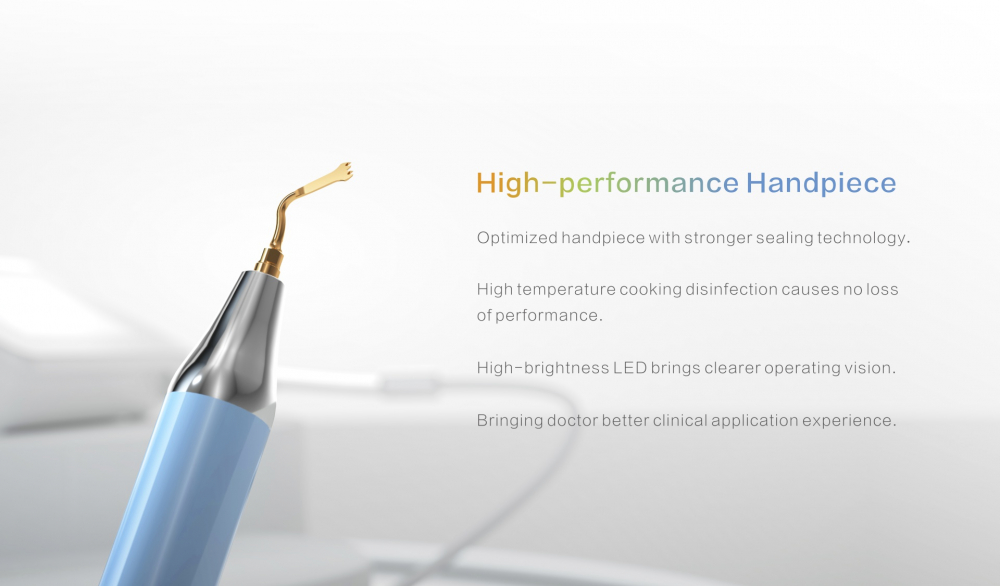

High-performance Handpiece
Optimized handpiece with stronger sealing technology.
High temperature cooking disinfection causes no loss of performance.
High-brightness LED brings clearer operating vision.
Bringing doctor better clinical application experience.

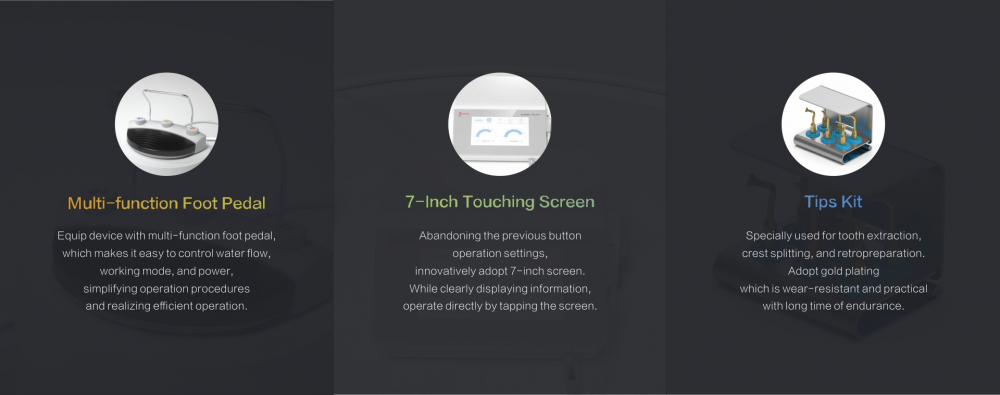

Muti-function Foot Pedal
Makes it easy to control water flow,working mode,and power.

7-Inch Touching Screen
Clearly displays information,operate directly by tapping the screen.

Tips Kit
Specially used for tooth extraction,crest splitting,and retropreparation.

Four working Modes:Cutting Mode,Periodontal Mode,Endodontic Mode,Cleaning Mode.

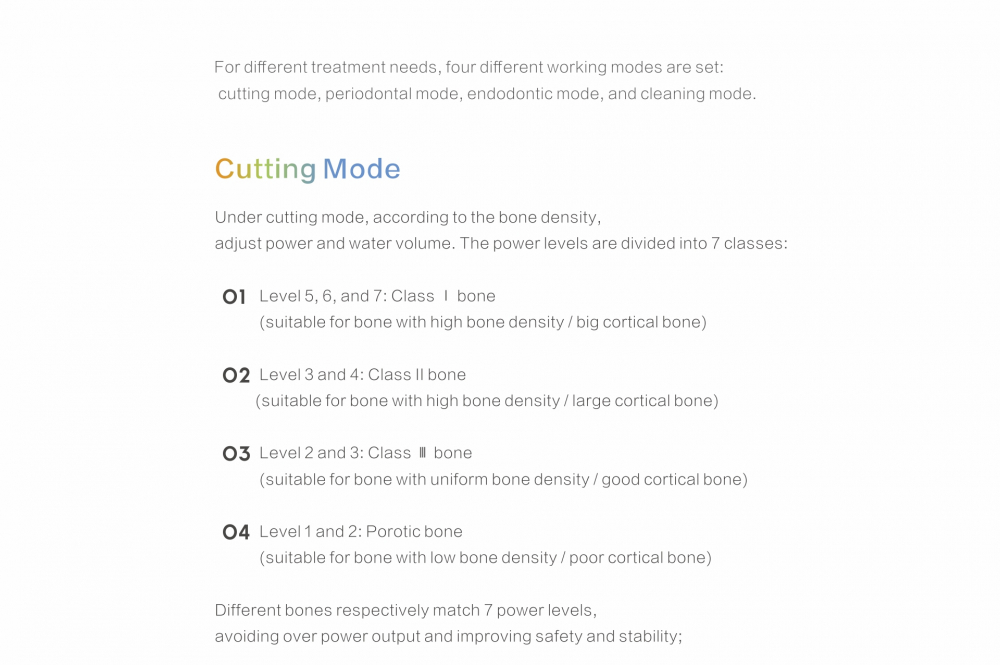

Cutting Mode:
Under cutting mode,according to the bone density,adjust power and water volume.The power levels are divided into 7 classes:
O1:Level 5,6 and 7:Class I bone
   (Suitable for bone with high bone density/big cortical bone)
O2:Level 3 and 4 :Class II bone
   (Suitable for bone with high bone density/large cortical bone)
O3:Level 2 and 3 :Class III bone
   (Suitable for bone with uniform bone density/good cortical bone)
O4:Level 1 and 2 :Porotic bone
   (Suitable for bone with low bone density/poor cortical bone)
Different bones respectively match 7 power levels,avoiding over power output and improving safety and stability;

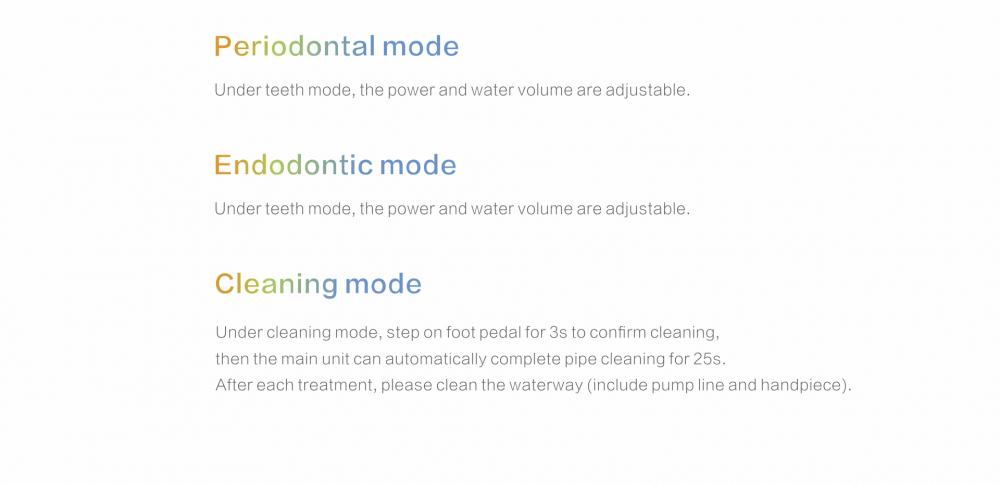

Periodontal Mode
Under teeth mode,the power and water volume are adjustable.

Endodontic Mode
Under teeth mode,the power and water volume are adjustable.

Cleaning Mode
Under cleaning mode,step on foot pedal for 3s to confirm cleaning,the the main unit can automatically complete pipe cleaning for 25s.After each treatment,please clean the waterway(include pump line and handpiece).

Specifications:
Dimension:276mmx267mmx110mm;
Intermittent running device:Intermittent running with 10s pause after 60s operation.
Water flow: 25-110ml/m;
Mains voltage:100-240v,50Hz/60Hz,150VA;
Working frequency:24-36KHZ;
Weight:2.8kgs;
Warranty: 2 Years for main unit.
