Woodpecker LX16 Plus,Innovative Three Wavelengths Blue Semiconductor Laser Therapy Device,CE/FDA
Wide scope of application
Intelligent human-machine interaction
Three wavelengths meet requirements of more treatments
Large-capacity battery
Effective prevention
Wide scope of application
Can be used for the fields of dental soft tissue surgery,endodontic sterilization, periodontal sterilization,peri-implantitis, lowintensity laser therapy,oral ulcer, and teeth whitening.
Remarkable treatment effect:
There is basically no bleeding during operation,maximally minimizing the postoperative swelling,reducing pain of patients, and accelerating the recovery.
Intelligent human-machine interaction
5-inch full-view capacitive touch panel with flat UI design.
Three wavelengths meet requirements of more treatments
01:
The innovative 450 nm blue laser technology is ideal for soft tissue cutting, ablation, coagulation
and incision/excision.At 450 nm, the absorption constant of hemoglobin is two orders of magnitude for ordinary lasers(e.g.980nm/810nm), making it only need very low laser power
to complete the treatment, and the thermal damage during treatment is extremely low.
02:
976nm is a traditional infrared dental laser.Due to its deep penetration in tissues,it is widely used for the reduction of bacteria in periodontal disease and endodontic diseases.At the same time, this wavelength is also suitable for high power laser treatment(HPLT) and pain reduction in TMJ.
03：
The 650 nm laser is used for low level laser therapy(LLLT) effects.It is also known as the photobiomodulation (PBM) effect.It will contribute to wound healing and biostimulation of dental surgery.
Effectively prevention of cross-infection
The fiber-optical tips and stainless handpiece sleeve can be autoclaved.
Large-capacity battery
11.1V2600mAhx2 (57.7Wh) lithium battery,which can be used for one week on a single charge.
Complete accessories
Fiber-opticaltip ; TMJ therapy tip ; whitening tip ; biostimulation tip ; laser protective glasses.
Effective prevention
Three pairs of laser protective glasses can effectively prevent the dentist,assistant and patient from laser radiation.

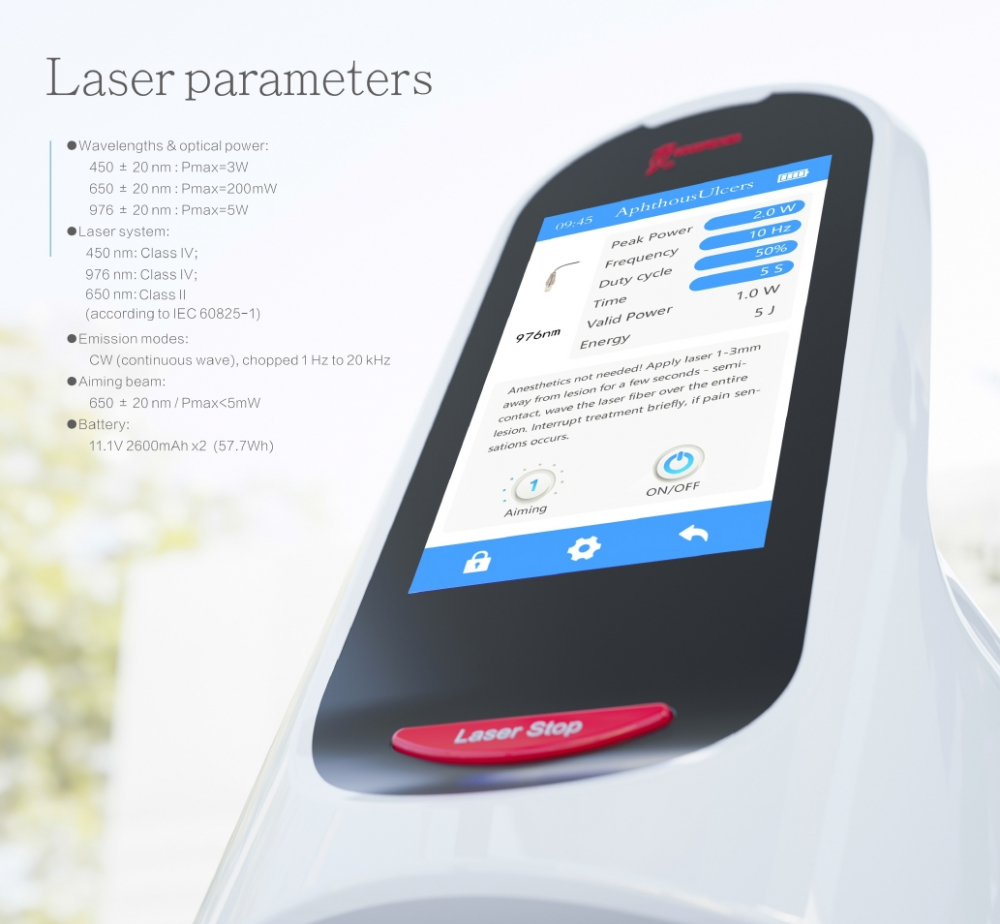

Laser parameters
Wavelengths & optical power:
450±20nm:Pmax=3W
650 ±20nm:Pmax=200mW
976±20nm:Pmax=5W
Laser system:
450 nm: Class IV:
976 nm: Class IV;
650 nm: Classll
(according to IEC 60825-1)
Emissian modes:
CW (continuous wave), chopped 1 Hz to 20 kHz
Aiming beam:
650±20nm/Pmax<5mW
Battery:
11.1V 2600mAhx2(57.7Wh)
Main technical parameters
Power adapter input：100-240Vac，50/60Hz，2.5A
Main unit input：15V 6.0A
Wavelength and power:
a）976± 20nm ： 0.2W-4W(CW), Peak Power 5W
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
b）650± 20nm ： 25mW-200mW(CW)
c）450± 20nm： 0.2W-3W(CW)
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
Laser classification:
a) 976 nm: Class 4
b) 650 nm: Class 2
c) 450 nm: Class 4
Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
Aiming beam: 650 ± 20 nm /Pmax<5mW
Divergence:12.7°(According to IEC 60825-1: 2014)
Rechargeable battery: 11.1V/2600mAh x2 (57.7Wh)
Time consumption for charging: about 4h (5 hours for first charging)
Diverging half angle: 0.22 mad/ 12.6 °
size: 22 cm x 20cm x 23cm
Weight: 1.5kg
Woodpecker LX16 Plus,Innovative Three Wavelengths Blue Semiconductor Laser Therapy Device,CE/FDA
Wide scope of application
Intelligent human-machine interaction
Three wavelengths meet requirements of more treatments
Large-capacity battery
Effective prevention
Wide scope of application
Can be used for the fields of dental soft tissue surgery,endodontic sterilization, periodontal sterilization,peri-implantitis, lowintensity laser therapy,oral ulcer, and teeth whitening.
Remarkable treatment effect:
There is basically no bleeding during operation,maximally minimizing the postoperative swelling,reducing pain of patients, and accelerating the recovery.
Intelligent human-machine interaction
5-inch full-view capacitive touch panel with flat UI design.
Three wavelengths meet requirements of more treatments
01:
The innovative 450 nm blue laser technology is ideal for soft tissue cutting, ablation, coagulation
and incision/excision.At 450 nm, the absorption constant of hemoglobin is two orders of magnitude for ordinary lasers(e.g.980nm/810nm), making it only need very low laser power
to complete the treatment, and the thermal damage during treatment is extremely low.
02:
976nm is a traditional infrared dental laser.Due to its deep penetration in tissues,it is widely used for the reduction of bacteria in periodontal disease and endodontic diseases.At the same time, this wavelength is also suitable for high power laser treatment(HPLT) and pain reduction in TMJ.
03：
The 650 nm laser is used for low level laser therapy(LLLT) effects.It is also known as the photobiomodulation (PBM) effect.It will contribute to wound healing and biostimulation of dental surgery.
Effectively prevention of cross-infection
The fiber-optical tips and stainless handpiece sleeve can be autoclaved.
Large-capacity battery
11.1V2600mAhx2 (57.7Wh) lithium battery,which can be used for one week on a single charge.
Complete accessories
Fiber-opticaltip ; TMJ therapy tip ; whitening tip ; biostimulation tip ; laser protective glasses.
Effective prevention
Three pairs of laser protective glasses can effectively prevent the dentist,assistant and patient from laser radiation.
Laser parameters
Wavelengths & optical power:
450±20nm:Pmax=3W
650 ±20nm:Pmax=200mW
976±20nm:Pmax=5W
Laser system:
450 nm: Class IV:
976 nm: Class IV;
650 nm: Classll
(according to IEC 60825-1)
Emissian modes:
CW (continuous wave), chopped 1 Hz to 20 kHz
Aiming beam:
650±20nm/Pmax<5mW
Battery:
11.1V 2600mAhx2(57.7Wh)
Main technical parameters
Power adapter input：100-240Vac，50/60Hz，2.5A
Main unit input：15V 6.0A
Wavelength and power:
a）976± 20nm ： 0.2W-4W(CW), Peak Power 5W
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
b）650± 20nm ： 25mW-200mW(CW)
c）450± 20nm： 0.2W-3W(CW)
chopped 1Hz to 20KHz
chopped mode:5us – 0.9S
Laser classification:
a) 976 nm: Class 4
b) 650 nm: Class 2
c) 450 nm: Class 4
Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
Aiming beam: 650 ± 20 nm /Pmax<5mW
Divergence:12.7°(According to IEC 60825-1: 2014)
Rechargeable battery: 11.1V/2600mAh x2 (57.7Wh)
Time consumption for charging: about 4h (5 hours for first charging)
Diverging half angle: 0.22 mad/ 12.6 °
size: 22 cm x 20cm x 23cm
Weight: 1.5kg
