Products description
Woodpecker i-Scan,Imaging Plate Scanner

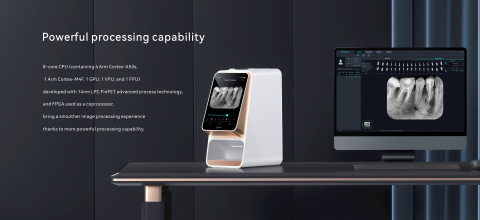

Powerful processing capability
8-core CPU (containing 4Arm Cortex-A53s,1 Arm Cortex-M4F, 1 GPU, 1 VPU, and 1 FPU) developed with 14nm LPC FinFET advanced process technology, and FPGA used as a coprocessor, bring a smoother image processing experience thanks to more powerful processing capability.
Super screen
7-inch 800*1280 ultra-high resolution capacitive touch screen realize the analysis of images with clear details on the i-Scan and computer,
ensuring the reliable diagnosis basis for dentists.
Powerful algorithm
One-click ultra-clear algorithm;
Multi-levelstructureimage algorithm;
Framework enhances the details of super-resolution images.
Ultra-high performance
8-core CPU developed with 14nm;
Advanced LPC FinFET process technology;
FPGA used as a coprocessor;
Over 100 million data acquired per dentat film;
Bring asmootherimage processing experience.

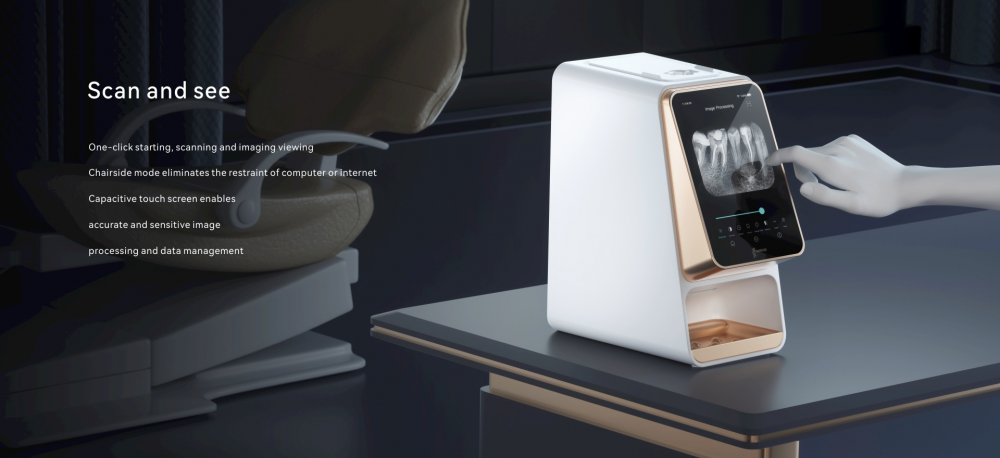

Scan and see
One-click starting,scanning and imaging viewing;
Chairside mode eliminates the restraint of computer or internet;
Capacitive touch screen enables accurate and sensitive image processing and data management.

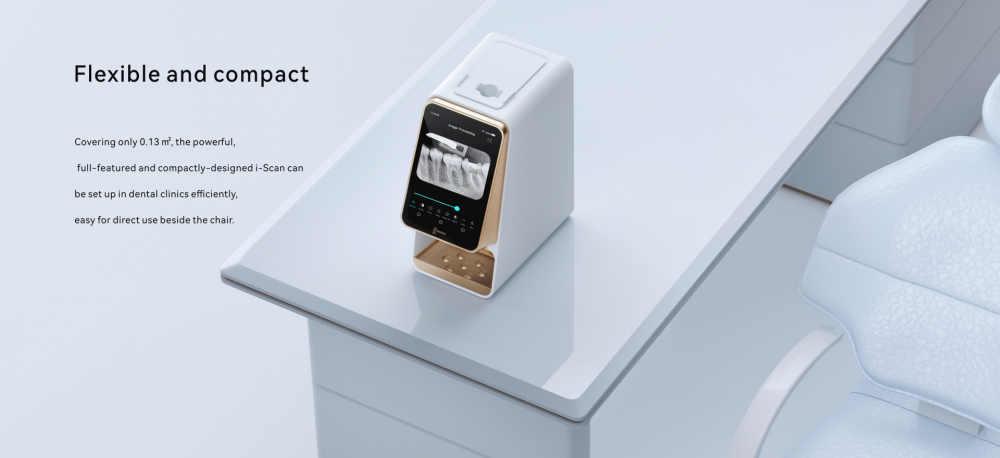

Flexible and compact
Covering only 0.13 m, the powerful full-featured and compactly-designed i-Scan can be set up in dental clinics efficiently, easy for direct use beside the chair.
Easy viewing
Unlimited terminal viewing (mobile phones,tablets,i-Scan and computers are supported) realizes digital mobile diagnosis and treatment, and makes doctor-patient communication more convenient.
Primary technical parameters:
Power adapter input: 100-240V 50/60Hz,1.1A.
Power adapter output: DC 15V 3.2A.

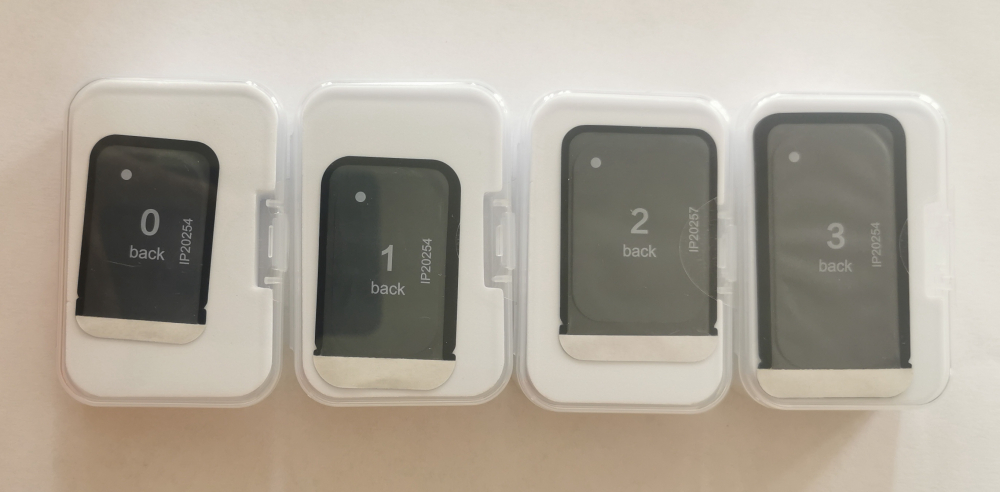

IP imaging plate model: 0; 1; 2; 3.
Threshold contrast: 4 holes of 1.0 mm, 1.5 mm, 2.0 mm and 2.5 mm can all be distinguished. Image uniformity: <2%.
Effective imaging area:
| Spcifications | Maximum dimensions(mm) | |
| X-direction | Y-direction | |
| 0 | 21 | 32 |
| 1 | 23 | 39 |
| 2 | 30 | 40 |
| 3 | 26 | 53 |
The max output of laser radiation, emitted wavelength and standard version of this product: Max output of laser radiation: 28mW
Emitted wavelength(s) : 651-665nm
Name and publication date of the standard: IEC/EN 60825-1:2014 1.8.9
Weight: 4.5KG 1.8.10
Scanning speed:
| Scan Mode | Scan time |
| Fast scan | 7s |
| Hige-precision scan | 10s |
| Ultra-hige precision scan | 15s |
Operation environment:
Environment temperature: 5℃ ~ 40℃
Relative humidity: 30% ~ 75%
Atmospheric pressure: 70kPa ~ 106kPa
