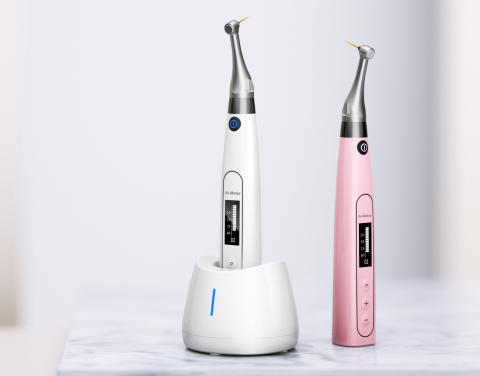

Ai-Motor(in white color),1st Brushless endo motor by woodpecker,CE/FDA

European Version! 2 Jahre Garantie! with VAT Invoice! Stock in Germany!

Ai-Motor(in white color),1st Brushless endo motor by woodpecker

360° rotatable contra-angle
6:1 contra angle
2000mAh lithium battery
Three times longer service life
Cinverient wireless charging

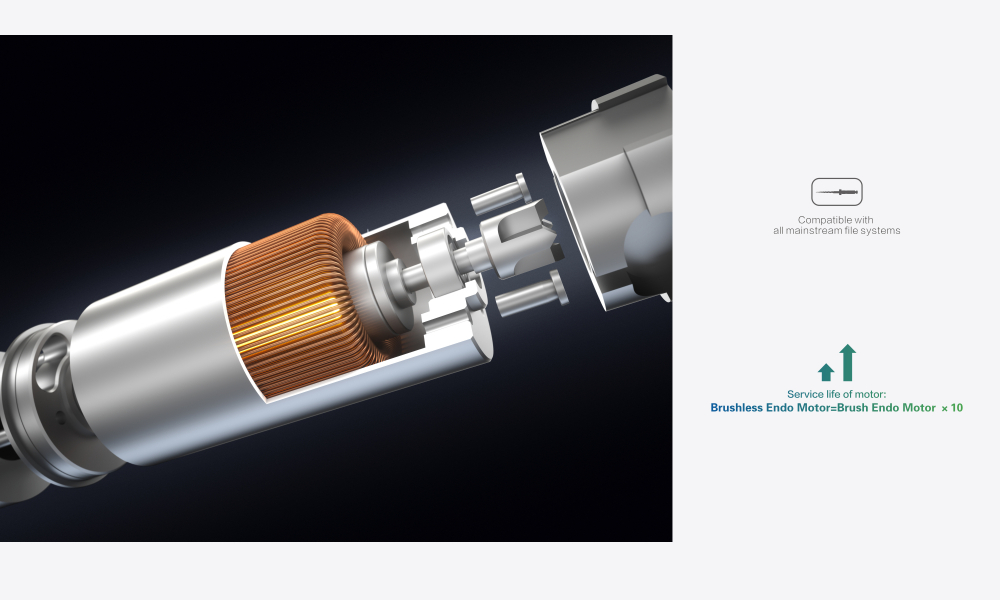

High Performance Brushless Motor

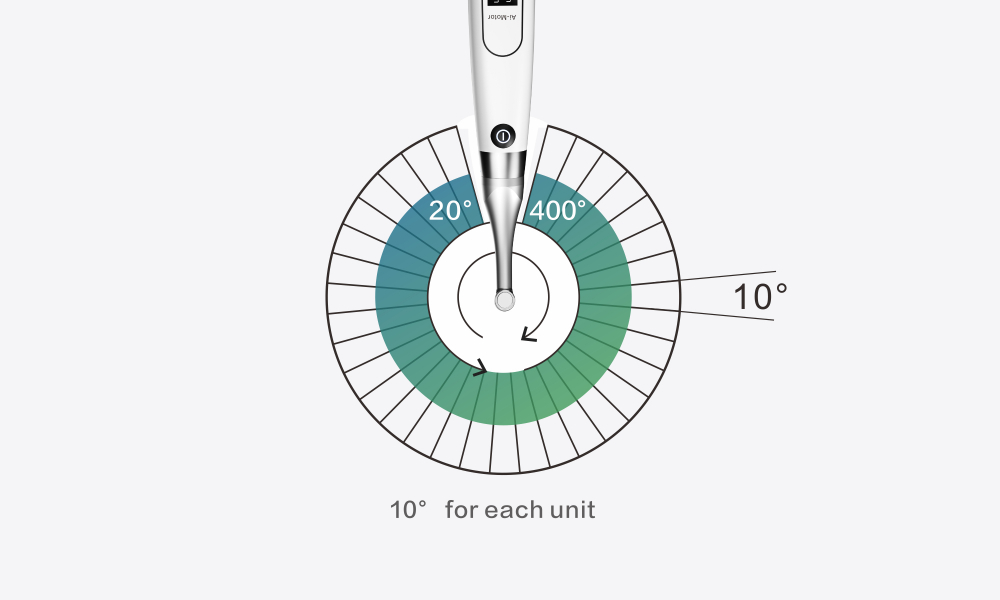

Adjustable reciprocating angle
(10° interval; adjustment range: 20° -400° );
Accurate rotating angle reduces risk of instrument fracture and enables higher preparing efficiency.

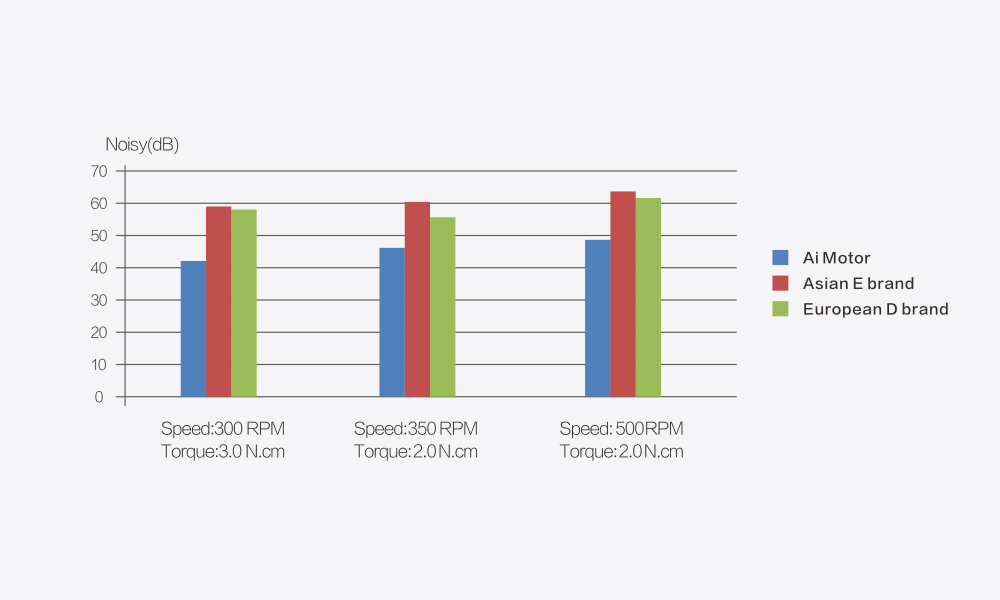

Smooth Rotation And Lower Noise Make Treatment More Endurable For Patients.

Strong Power, Together With Accurate And Stable Torque Output, Helps ToRealize Efficient Root Canal Peparation.
Speed range :100-1200 RPM
Torque range: 0.4-5.0 N.cm
Reciprocating angle adjustment range : 20°-400°

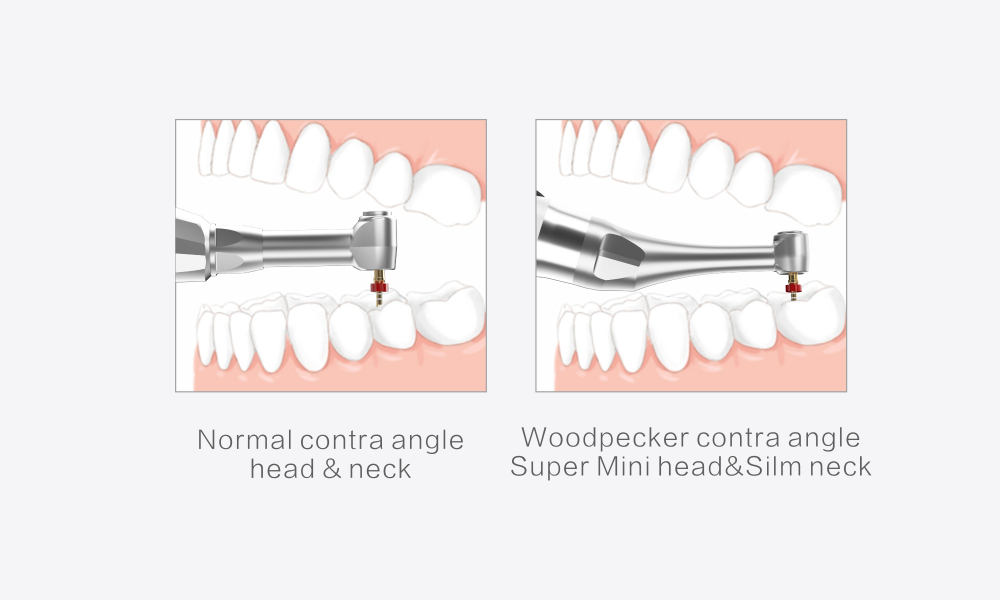

Super Mini Contra-angle
Super mini head with a diameter of 8 mm and a height of 9.7 mm brings clear vision during operation.

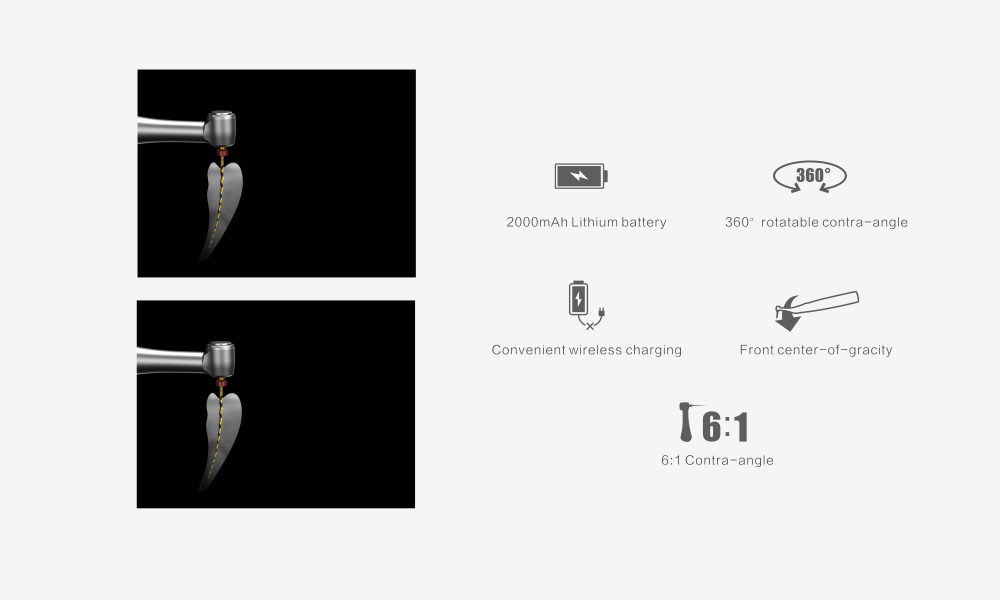

Built-in Apex locator
Integrated length determination makes endodontic treatment safer and more efficient. Realize real-time display offile location in canal. Automatically stops or reversely rotates as soon as the file reaches the apical stop, so as toprevent perforation. Auto Start and Auto Stop functions respectively enable motor to automaticall start while thefile gets in canal and stop when itis out.

Primary technical parameters
Lithium battery in motor handpiece: 3.7V /2000mAh
Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
Input: ~100V-240V 50Hz/60Hz 0.4A Max
Output: DC5V/1A
Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）
Speed rang: 100rpm~1200rpm
Wireless charging(only for Ai-Motor)  Frequency range: 112-205KHz
Maximum RF output power of the product: 9.46dBuA/m@3m
