1Pc WOODPECKER Endo treatment tip E1,E2, E3,E4....series , fit EMS, CE/FDA

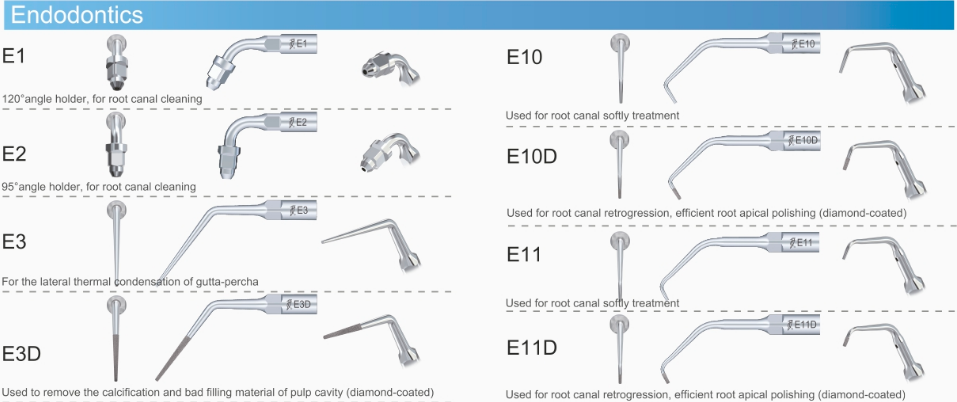

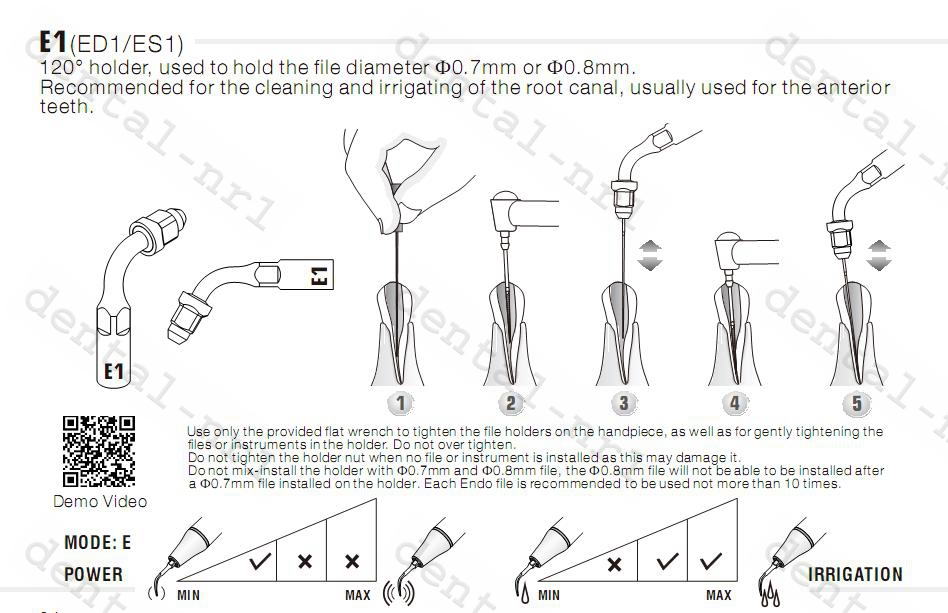

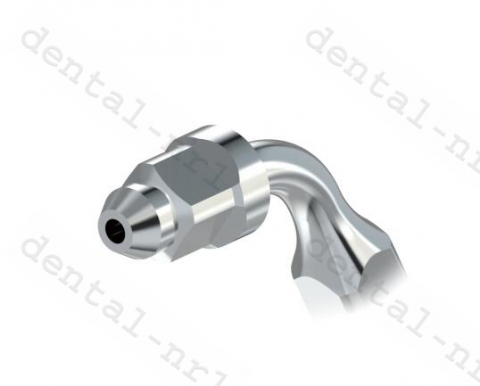

E1(ED1/ES1):
120° holder, used to hold the file diameter Ф0.7mm or Ф0.8mm.
Recommended for the cleaning and irrigating of the root canal, usually used for the anterior teeth.

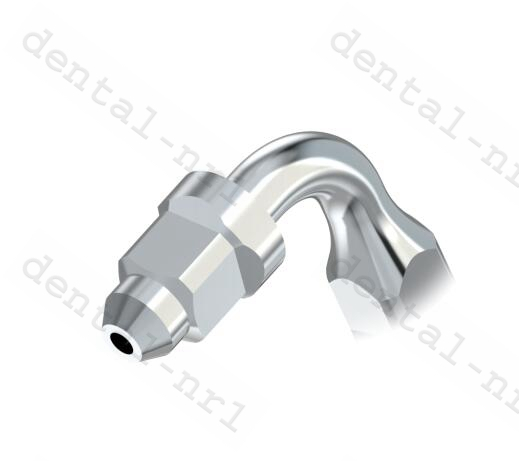

E2(ED2/ES2):
95° holder, used to hold the file diameter Ф0.7mm or Ф0.8mm.
Recommended for cleaning and irrigation of the root canal, usually used for the molar teeth.

E3(ED3/ES3):
Recommended for melting gutta-percha.  Immerse the instrument in eugenol before inserting it in the canal.
Slightly press the instrument against the cone of gutta-percha and activate the scaler to  condense until the canal is filled.

E3D(ED3D/ES3D):
Diamond-coated(40μm) instrument for enlarging the root canal and access to files broken in
the root canal.
Don't touch the broken file when enlarging the root canal in case putting it deeper in the canal.

E4  Used to remove the root filling obstructions during the root canal retreatment.  The length of tip slender part is (22mm)

E4D:
Diamond-coated(40μm) instrument for removing the calcification and bad filling material  in the root canal during the root canal retreatment.
The length of the diamond-coated on tip is (15mm).

E5  Used to remove the root filling obstructions during the root canal retreatment.  The length of tip slender part is (16mm)
E5D: Diamond-coated(40μm) instrument for removing the calcification and bad filling material in the root canal during the root canal retreatment. The length of the diamond-coated on tip is (10mm).
E6  Thin and flexible , used for removing foreign body in deep canal.

E7 Thin and flexible , used for removing foreign body in 1/3 canal.

E8
Recommended for holding different types of dental bur to realize a variety of treatment on teeth. Usually used for the anterior teeth.
Special burs used for dental implant is applicable.

E9
Recommended for holding different types of dental bur to realize a variety of treatment on teeth. Usually used for the molar teeth.
Special burs used for dental implant is applicable.
E10D  Diamond-coated(40μm) instrument for high efficiency root planning in the retrograde  preparation of root canals. The length of the diamond-coated on tip is (3.3mm).
E11  Used to polish the root canal in the retrograde preparation of root canals. The length of tip slender part is (3.5mm).
E11D  Diamond-coated(40μm) instrument for high efficiency root planning in the retrograde
preparation of root canals. The length of the diamond-coated on tip is (2.2mm).

E14 Instrument for the removal of broken files inside the root canal. The length of tip slender part
is (22mm). If possible place the patient’s head in a position where the root canal is horizontal with a downward inclination. Rotate the tip of the instrument counterclockwise around the broken part until it is picked out from the root canal.  To avoid push the broken file deeper into the root canal, do not use pressure to the instrument in the axial direction.
E14D  Diamond-coated(40um) instrument for removing the calcification and bad filling material in the root canal during the root canal retreatment. The length of the diamond-coated on tip is (15mm).
With irrigation.
E15  Instrument for the removal of broken files inside the root canal. The length of tip slender part is (16mm).
If possible place the patient’s head in a position where the root canal is horizontal with a downward inclination. Rotate the tip of the instrument counterclockwise around the broken part until it is picked out from the root canal.
To avoid push the broken file deeper into the root canal, do not use pressure to the instrument in the axial direction.

E60
            Features: Minimally invasive irrigation; the working part is spiral but not sharp, with basically no cutting ability, effectively avoiding the root canal  shape from being destroyed, bringing efficient and safe operation.
             Irrigating operation: Put the irrigating tip into the root canal, try to keep the tip unstressed, start the device for 20 seconds and then stop to clean the root canal. Generally, a root canal needs to be irrigated 3×20 seconds. Recommended service life: 30 ~ 50 root canals
             Note:
             (1) In order to ensure the service life of the tip, it is recommended to use it according to the recommended method: first perform the external debugging, start the foot pedal under power level 1, ensure the water output is normal, and adjust the power within the power level limit (level 1~6) according to individual need to ensure that the water output can reach the tip end (the water can reach the tip end through adjusting water volume). After all the above steps, start root canal irrigation.
              (2) During irrigation, in order to avoid instrument fracture, please prevent tip from getting stuck and vibrating in root canal.
E62
              Function: Used for irrigation of root canal after root canal preparation.
              Dimensions: Ô0.3mm; taper 0%. Working part length: 16mm
               Features: Minimally invasive irrigation; the surface of working part is smooth, with cutting ability, effectively avoiding the root canal shape from being destroyed, bringing safer operation.
               Irrigating operation: Put the irrigating tip into the root canal, try to keep the needle unstressed, start the device for 20 seconds and then stop to clean the root canal. Generally, a root canal needs to be irrigated 3×20 seconds. Recommended service life: 30 ~ 50 root canals
               Note:
               (1) In order to ensure the service life of the tip, it is recommended to use it according to the recommended method: first perform the external debugging, start the foot pedal under power level 1, ensure the water output is normal, and adjust the power within the power level limit (level 1~3) according to individual need to ensure that the water output can reach the tip end (the water can reach the tip end through adjusting water volume). After all the above steps, start root canal irrigation.
                (2) During irrigation, in order to avoid instrument fracture, please prevent tip from getting stuck and vibrating in root canal.
